Superior Rigidity & Strength
The integrated shaft body resists bending and torsional deformation, helping the reed maintain accurate alignment throughout repeated high-speed beating cycles.
Qingdao JETMECH Machinery Technology Co., Ltd.

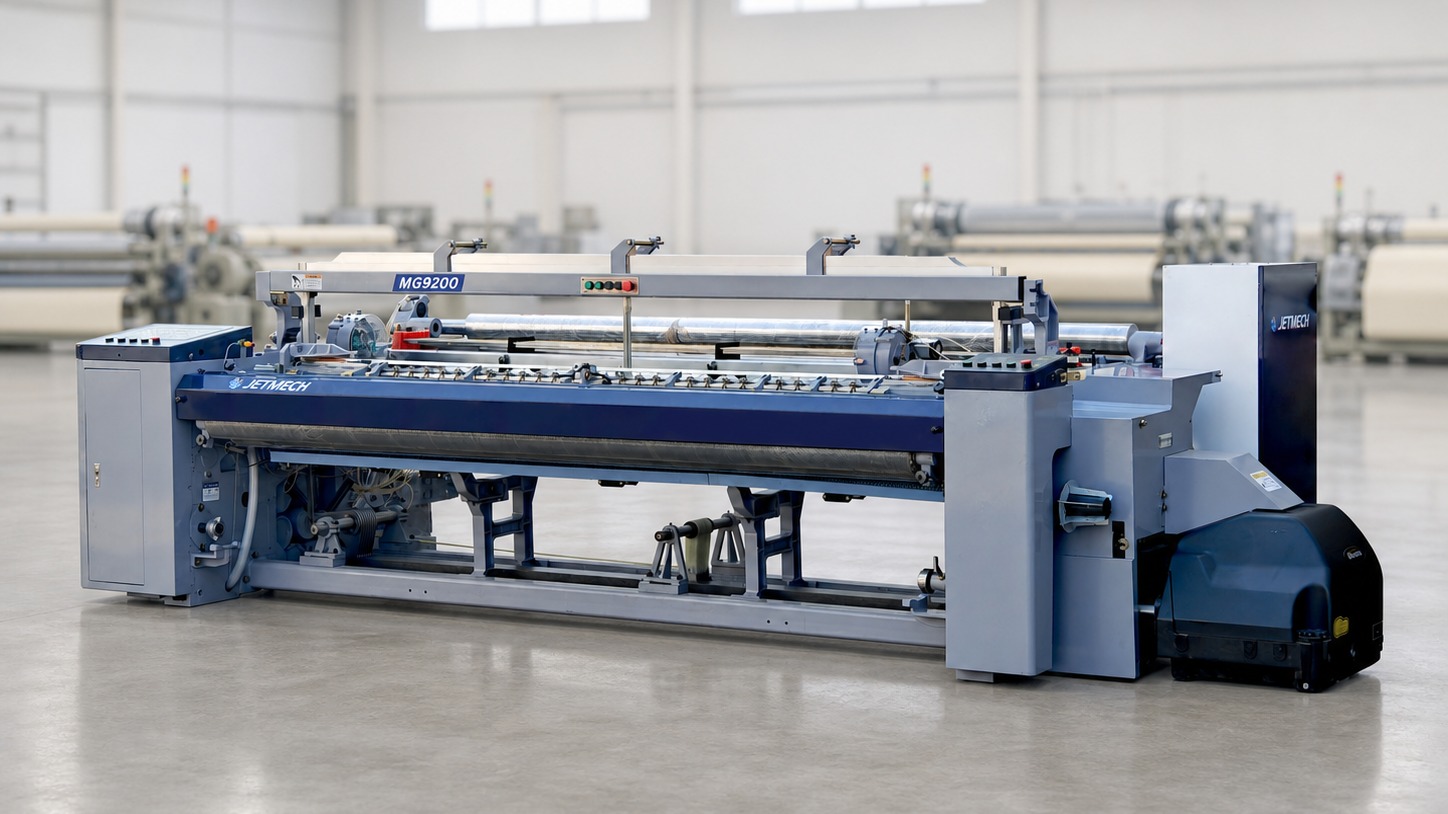

MG9200 Max Air Jet Loom for Modern Weaving Mills
JETMECH is an air jet loom manufacturer in Qingdao, China, supplying the MG9200 Max shuttleless weaving machine for cotton, blends, denim, and home textiles, with technical guidance and export quotation support.
ABOUT US
JETMECH builds MG9200 Max air jet looms for cotton, blends, denim, home textiles, and high-efficiency woven fabrics. From the complete machine to core technology, component systems, and final configuration, this page shows how each loom is matched to specific fabric and production requirements.
Technical & Service Support
Backed by an experienced technical team, we provide professional online technical consultation and reliable after-sales support, including spare parts supply.

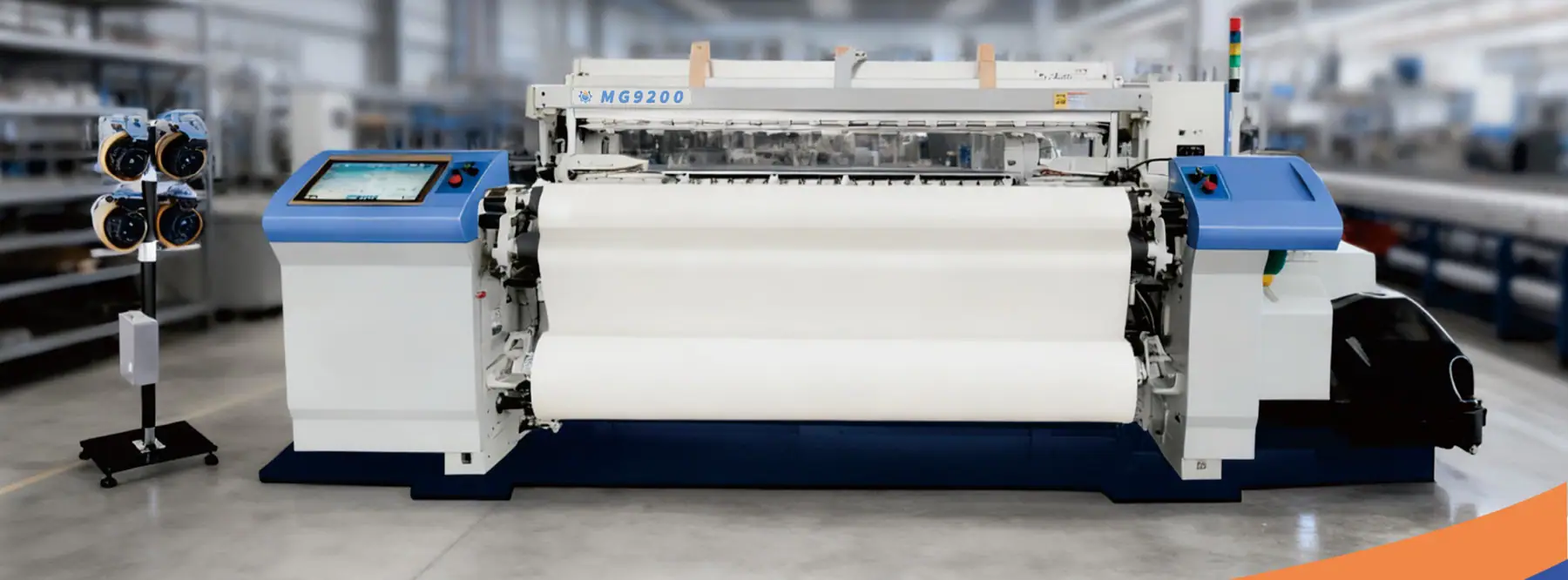

MG9200 Max Air Jet Loom
MG9200 Max Air Jet Loom
What Is MG9200 Max?
MG9200 Max is the upgraded air jet loom configuration built around JETMECH's patented beating shaft, also known as the sley shaft. This balanced shaft drives the reed with stable beat-up force, helping improve fabric consistency, reduce vibration, and support reliable high-speed weaving.
01
Core Technology
See how the patented beating system supports fabric consistency, lower vibration, and stable operation.
Patented System
Coaxial Central Dynamic Balance Weft Beating Shaft
The beating shaft is one of the most important systems in an air jet loom. It determines beat-up force, weft density uniformity, vibration level, and long-term weaving stability. JETMECH MG9200 Max uses a patented integrated beating shaft design for quiet, stable, and high-speed performance.
Patent Technology
ZL20232***0910.5
Designed for powerful, uniform beat-up force across the full fabric width.
The integrated beating shaft converts the loom’s drive motion into a controlled beat-up movement. Its coaxial, dynamically balanced structure distributes force across the reed width while limiting vibration at the shaft supports.
- 01Balanced input
Coaxial geometry keeps the rotating mass centered through each weaving cycle.
- 02Even transmission
The integrated shaft carries beat-up force continuously from the center to both ends.
- 03Controlled beat-up
The reed reaches the fell line with repeatable timing and force at production speed.
High Weft Density Uniformity
Evenly distributed beat-up force supports consistent weft density across the fabric width, reducing visible bars and variation between woven sections.
Excellent Weaving Stability
Dynamic balance limits vibration at operating speed, supporting repeatable reed motion, steadier running, and reliable fabric formation over long production periods.
Longer Equipment Life
Lower vibration and smoother force transmission reduce stress on bearings, gears, and shaft supports, helping extend service intervals and equipment life.

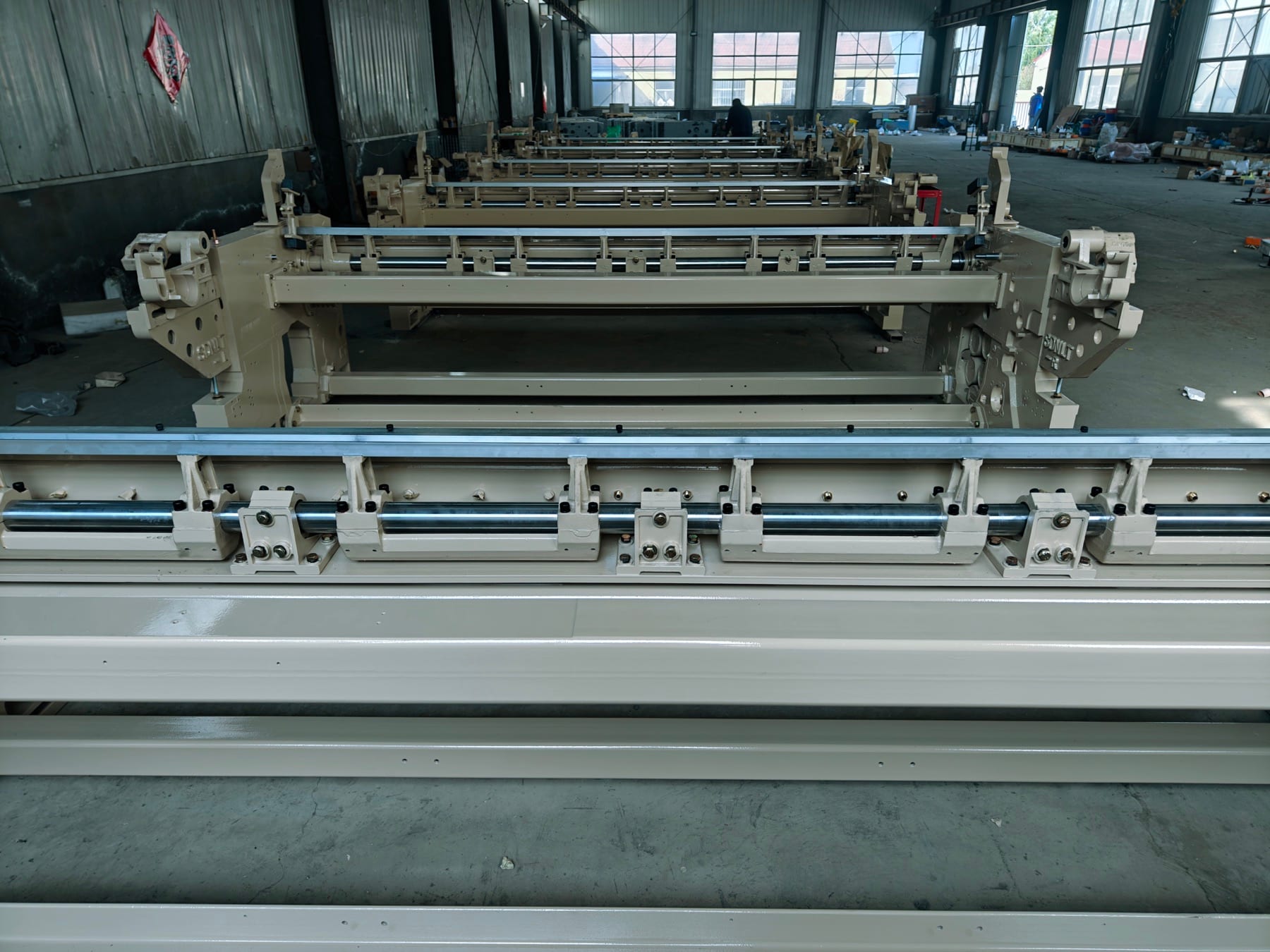

This real-machine view shows the patented beating shaft installed across the full reed width. The integrated, dynamically balanced structure helps deliver uniform beat-up force with lower vibration during high-speed operation.
02
Machine Overview & Project Fit
Check the core machine fit first, then review the frame option and real-machine service views.
Configuration at a Glance
Use these four points to check the basic machine fit before reviewing the systems below. Final reed width, shedding, nozzle/feeder layout, and drive package are confirmed from the fabric construction, finished width, number of weft colors, target output, and available compressed-air capacity.
- Reed Width
- 190 / 280 cmOther widths are available for different fabric requirements.
- Shedding
- Crank / CamElectronic dobby is available for complex weave patterns.
- Nozzle / Feeder Layout
- 2N/2F or 4N/2FN = nozzles; F = feeders; up to 8N/8F.
- Main Drive
- 5 kW Servo MotorDirect-drive servo motor for stable operation.
Frame & Air Reserve Option

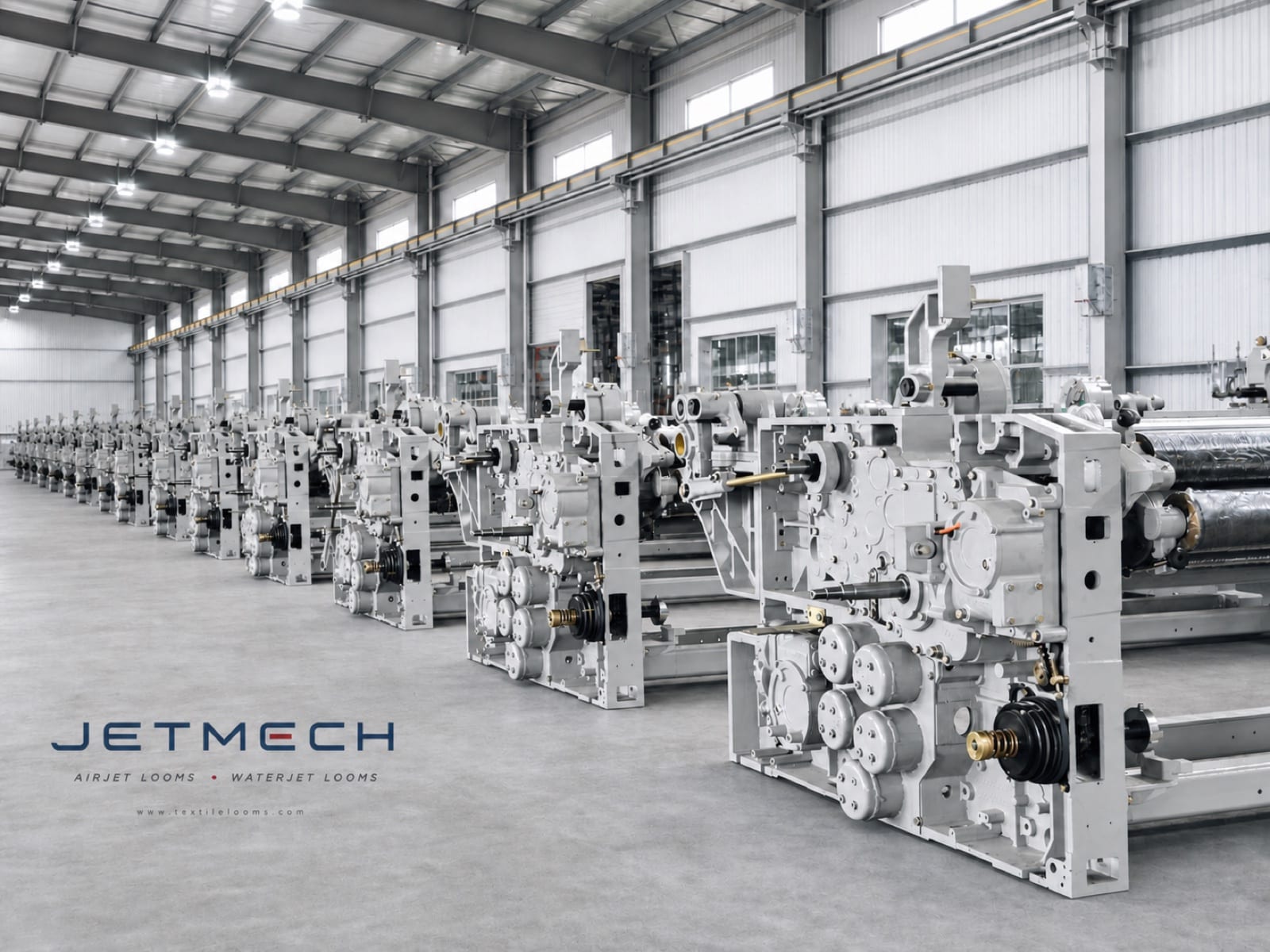

Heavy-Duty Frame with Up to Five Side Air Tanks
The optional side-mounted tanks provide reserve-air capacity close to the loom, helping limit short-term pressure variation during high-speed weft insertion. The required quantity is matched to reed width, yarn, target speed, and factory air supply.
Real Machine Views
Drive-side and warp-side views show the service areas and overall machine structure.
Drive Side

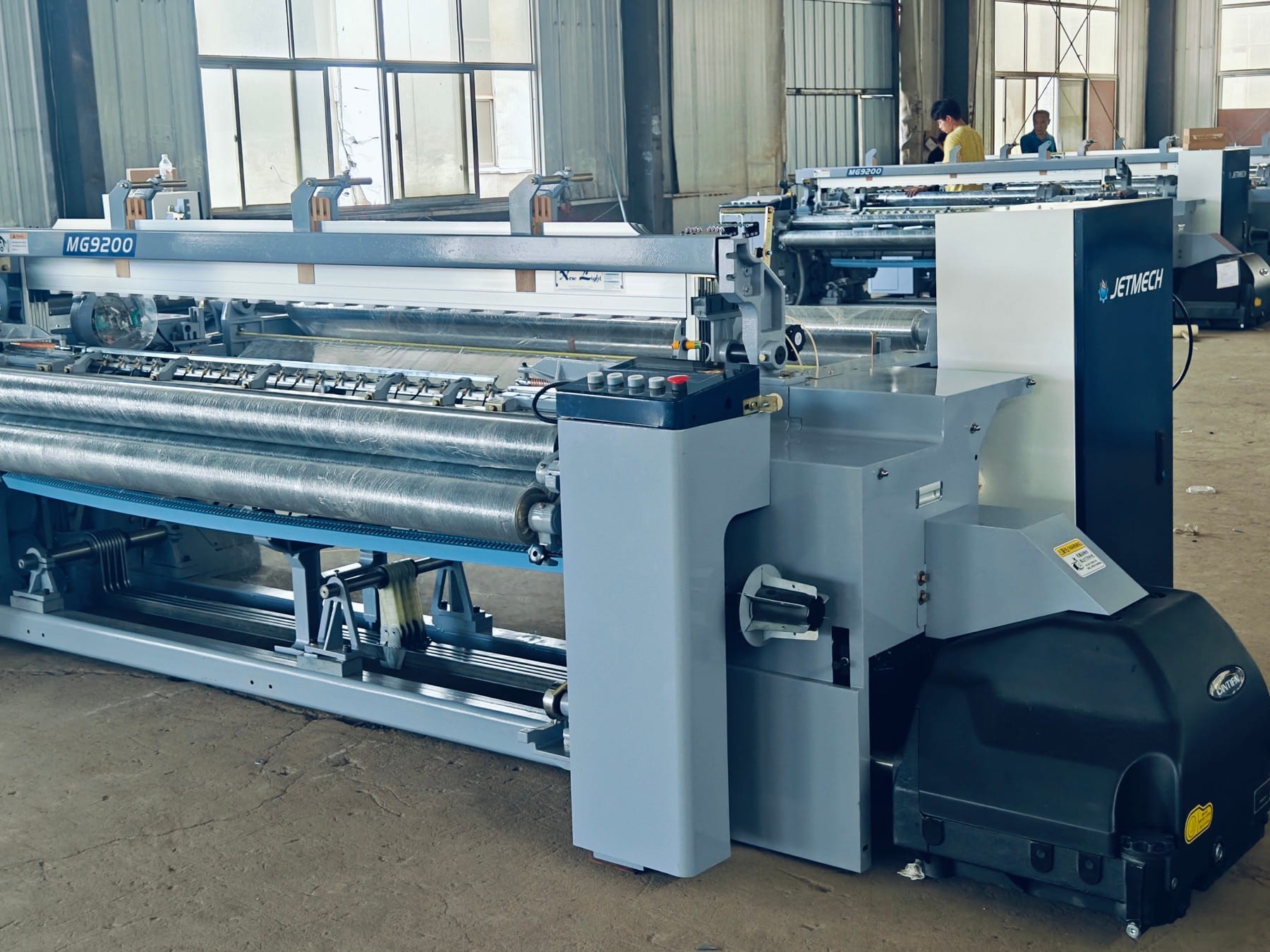

Drive-Side (Cam-Side) Exterior View
This exterior view shows the drive-side structure, side covers, and service-access area. Internal cam configuration is confirmed separately in the machine specification.
Rear View

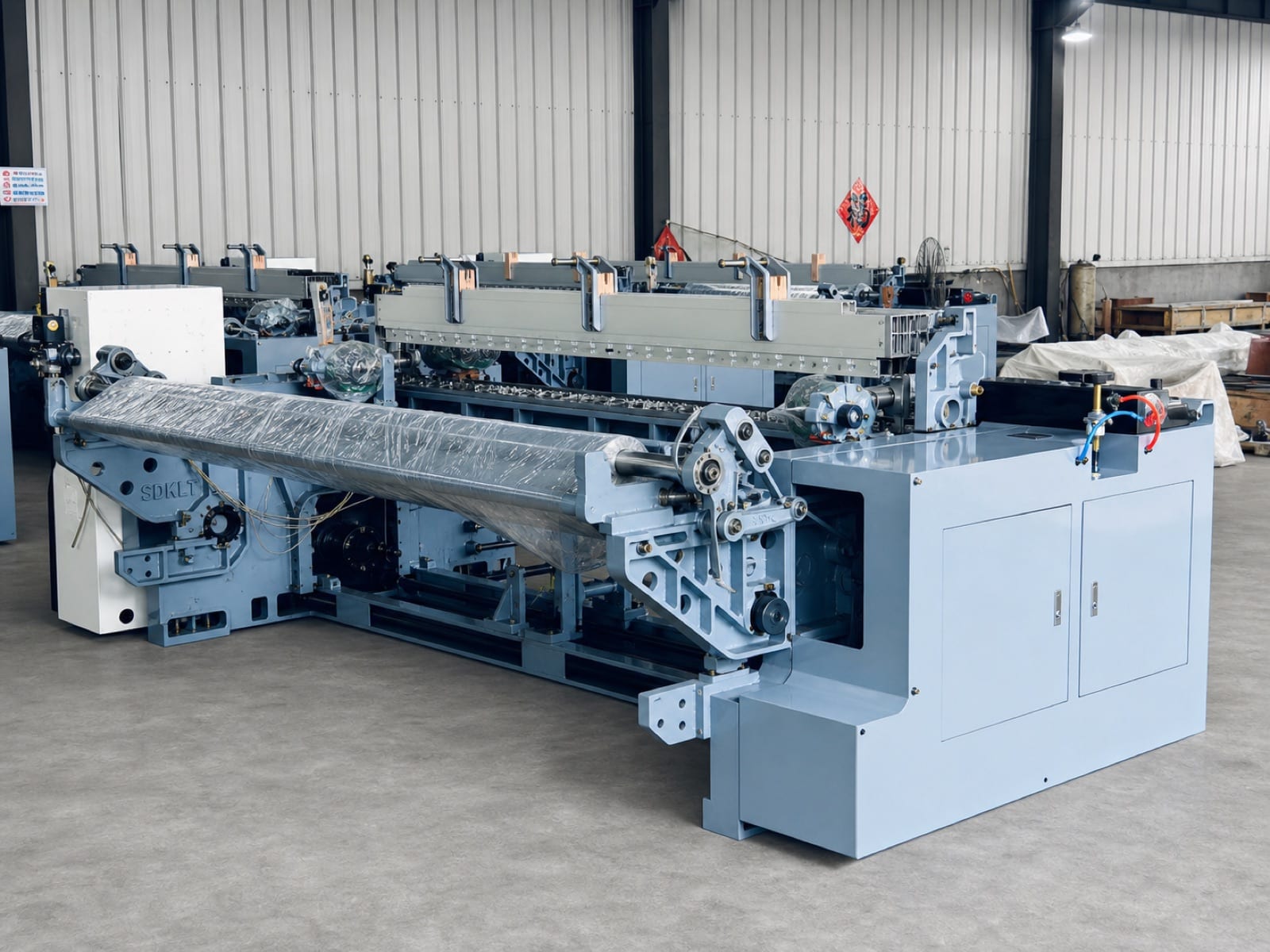

Warp-Side Rear View
The rear view shows the back frame, warp-beam mounting area, and rear service aisle used for warp preparation and routine maintenance.
03
Component Systems
Follow the operating sequence from control and drive through weft insertion, fabric formation, and maintenance.
Control System & Drive (Power) System
Production settings are entered and monitored through the HMI. The servo main drive converts those commands into precise, responsive machine motion.
Electronic Control

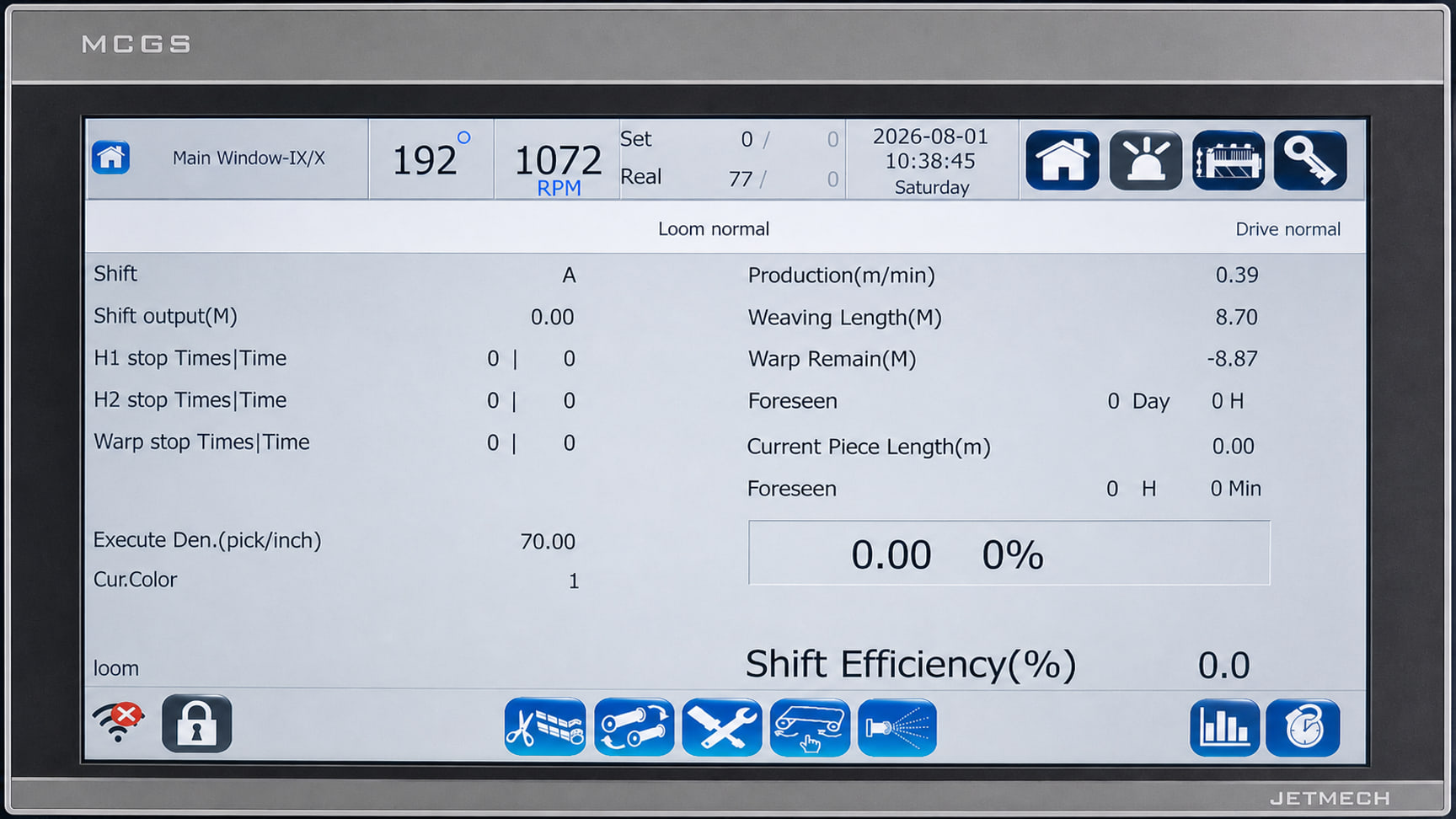

14-Inch HMI & Smart Control
The 14-inch Smart interface brings operating status, production data, and parameter settings together on one screen for clear day-to-day control.
Main Drive System

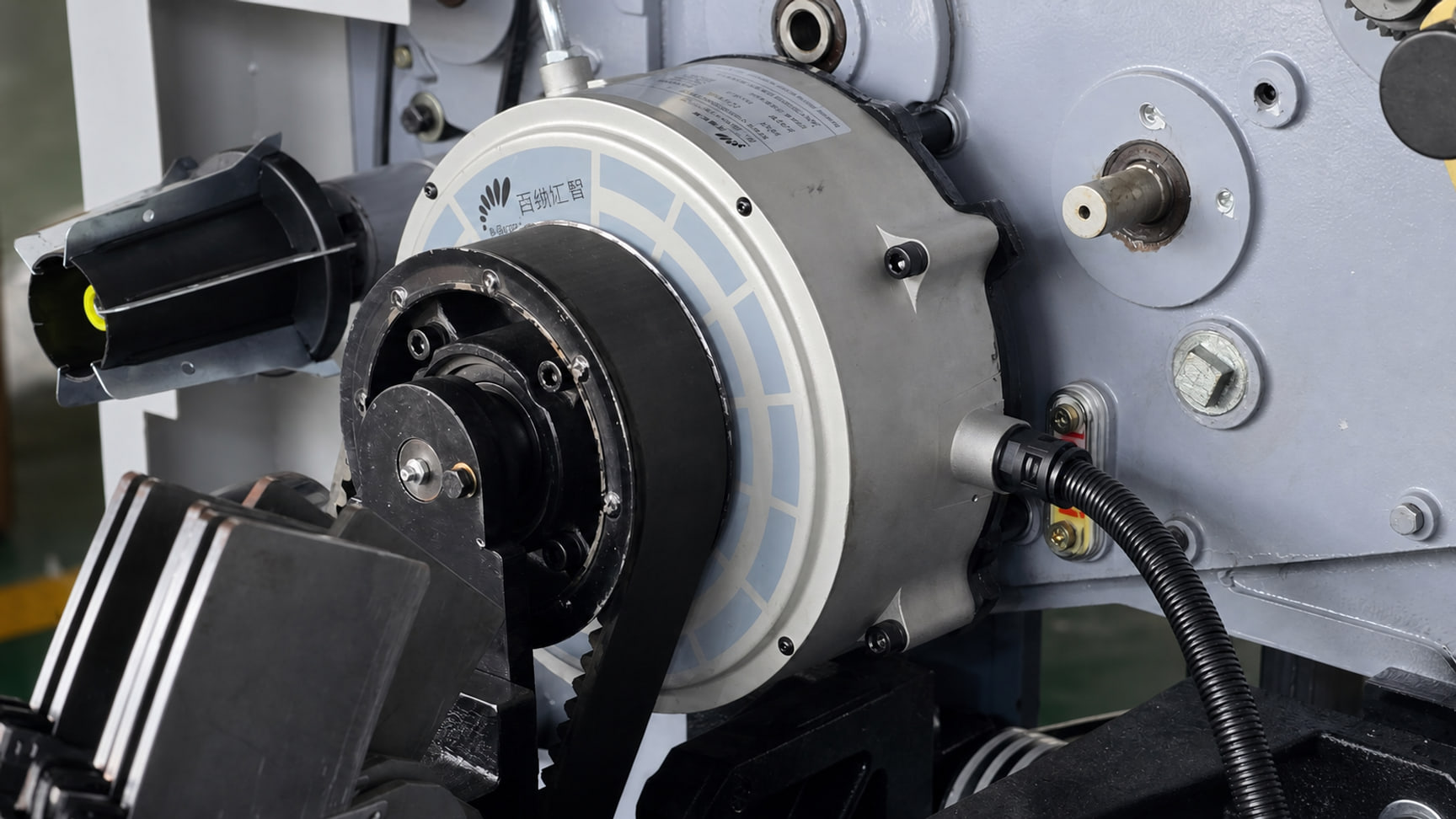

X Moto Servo Main Motor
The X Moto servo main motor follows speed commands with strong low-speed torque and fast response, supporting smooth, controlled operation.
Weft Insertion & Air Management
Pressure regulators, solenoid valves, the main nozzle, and relay nozzles work in sequence to carry the weft across the reed width with controlled pressure and timing.
Air Pressure Control

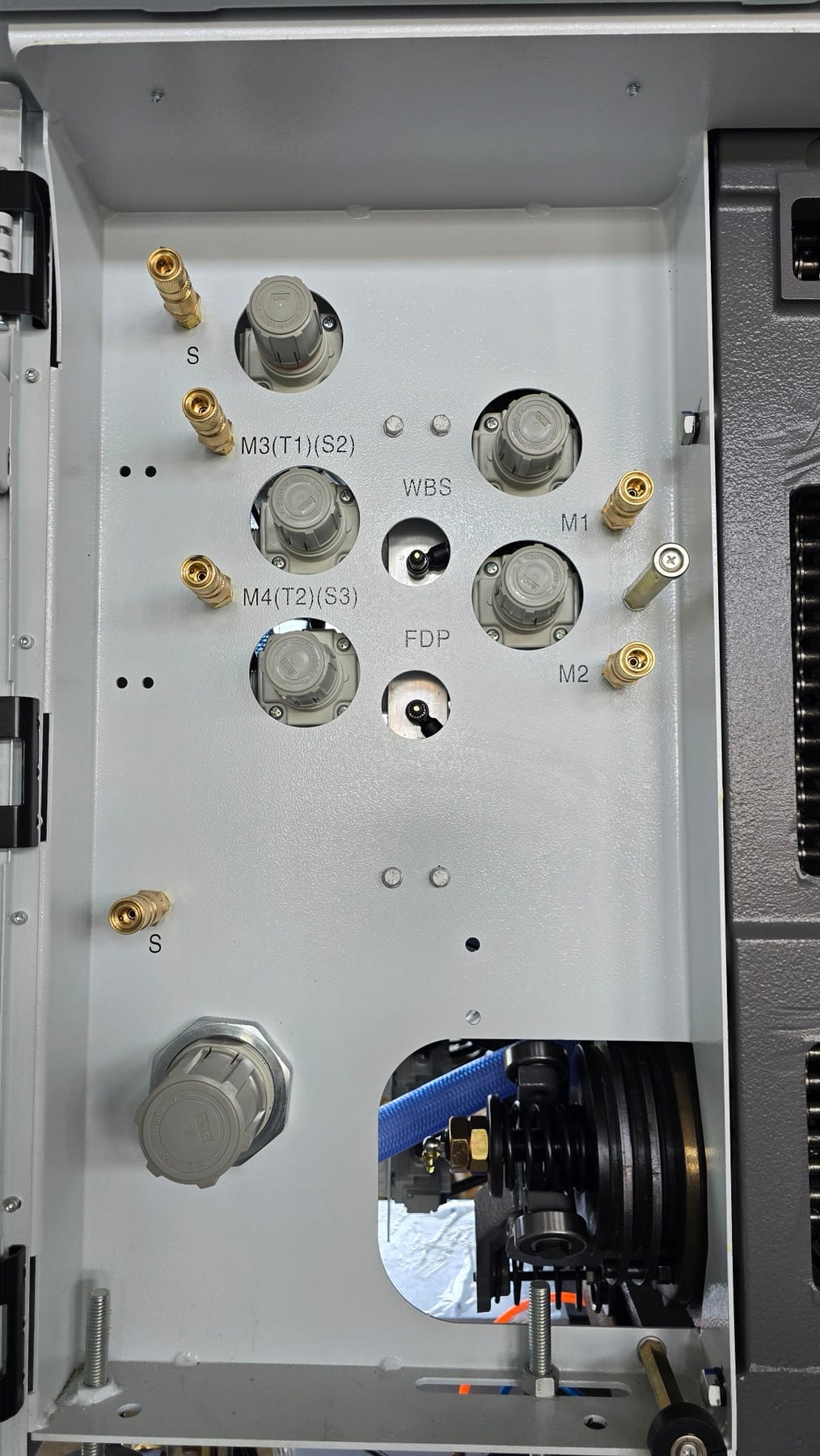

SMC Pressure Regulators
SMC regulators set the main and auxiliary air circuits independently to match the fabric and target speed.
Auxiliary Nozzle Control

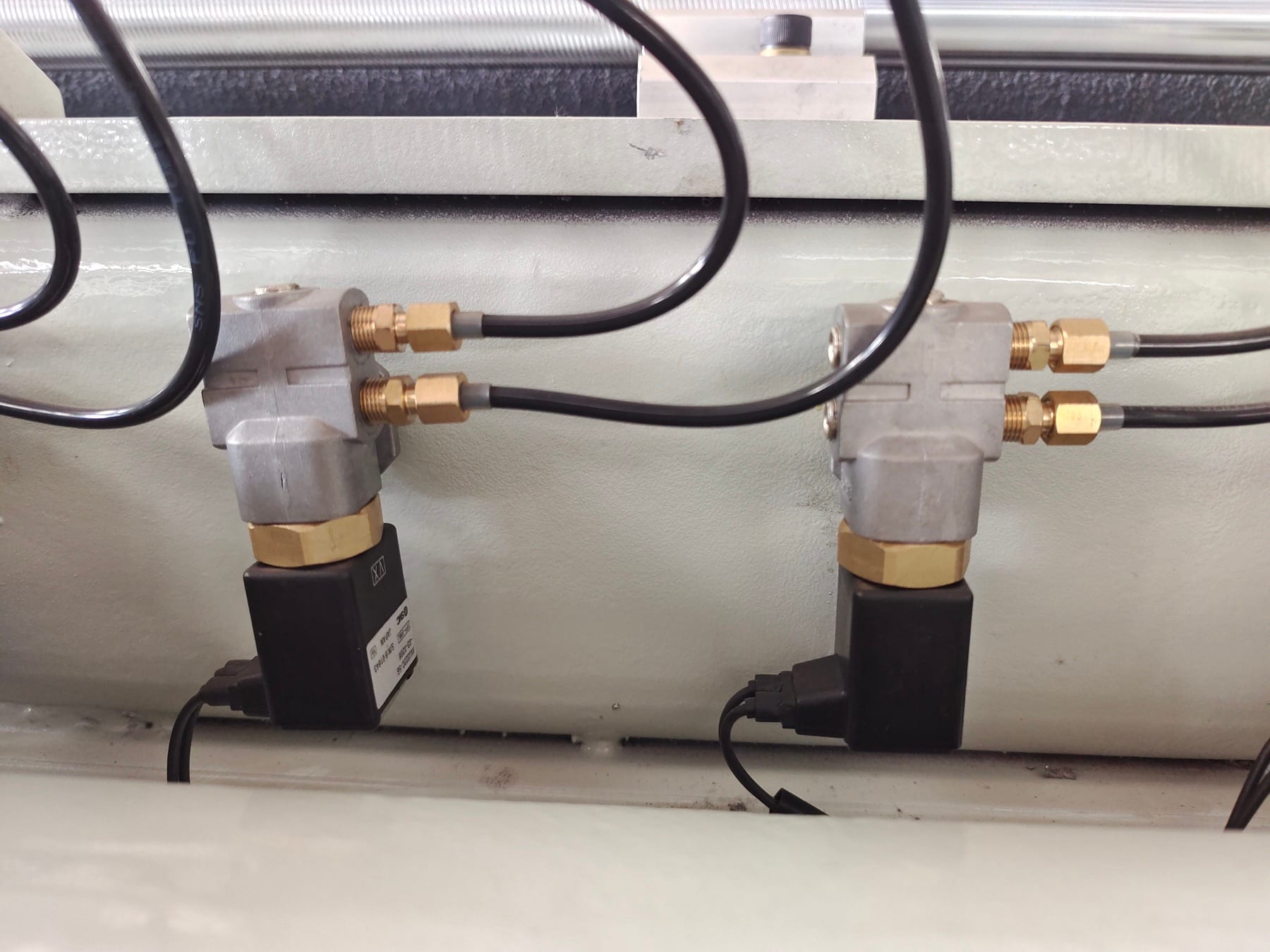

SMC Solenoid Valves
SMC solenoid valves control auxiliary-nozzle timing precisely; one valve serves two auxiliary nozzles.
Main Nozzle System

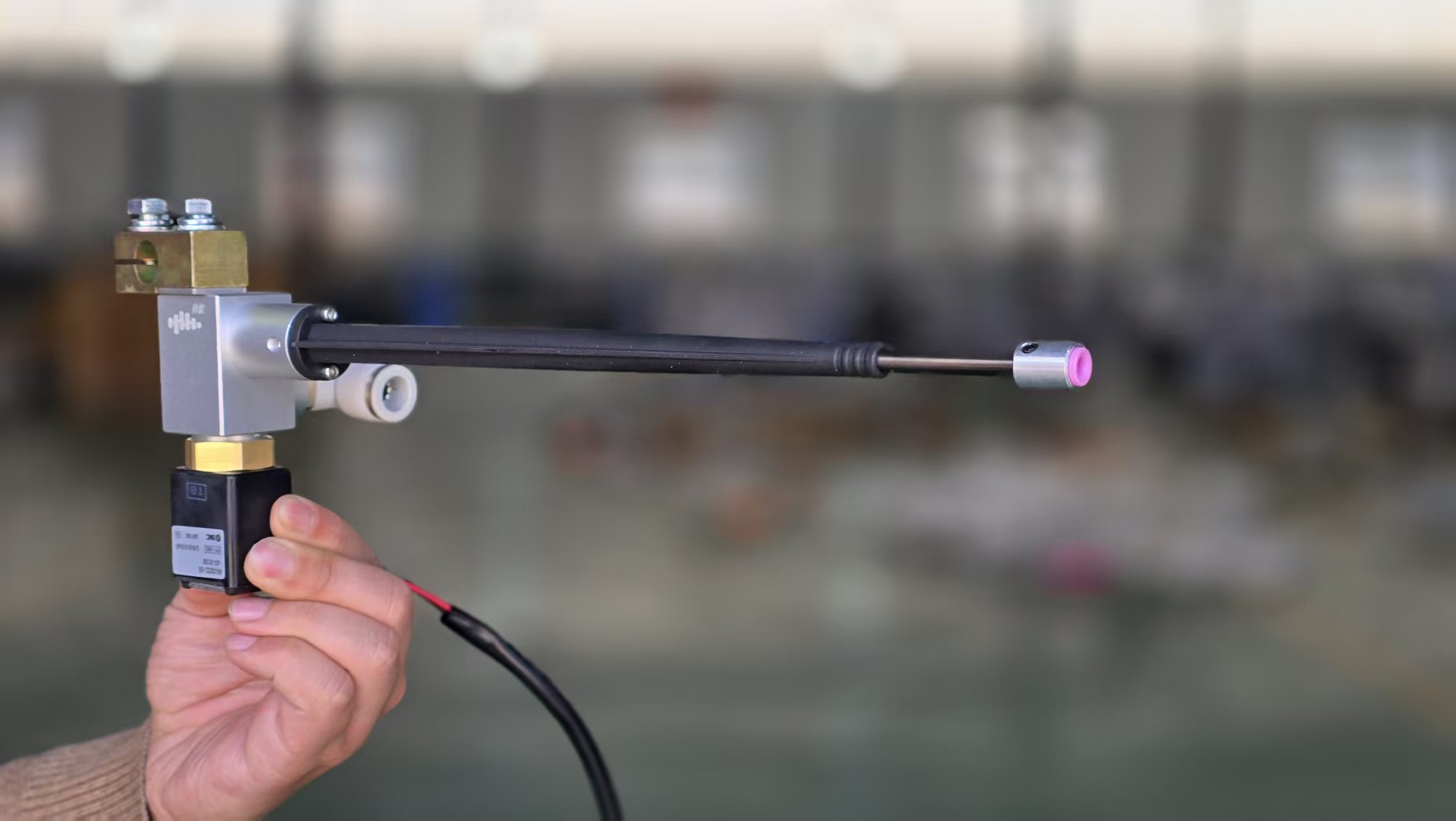

Direct-Mounted SMC Main Nozzle
Direct-mounted SMC valve control improves airflow response. A ceramic tip increases wear resistance and nozzle life.
Air Insertion Parts

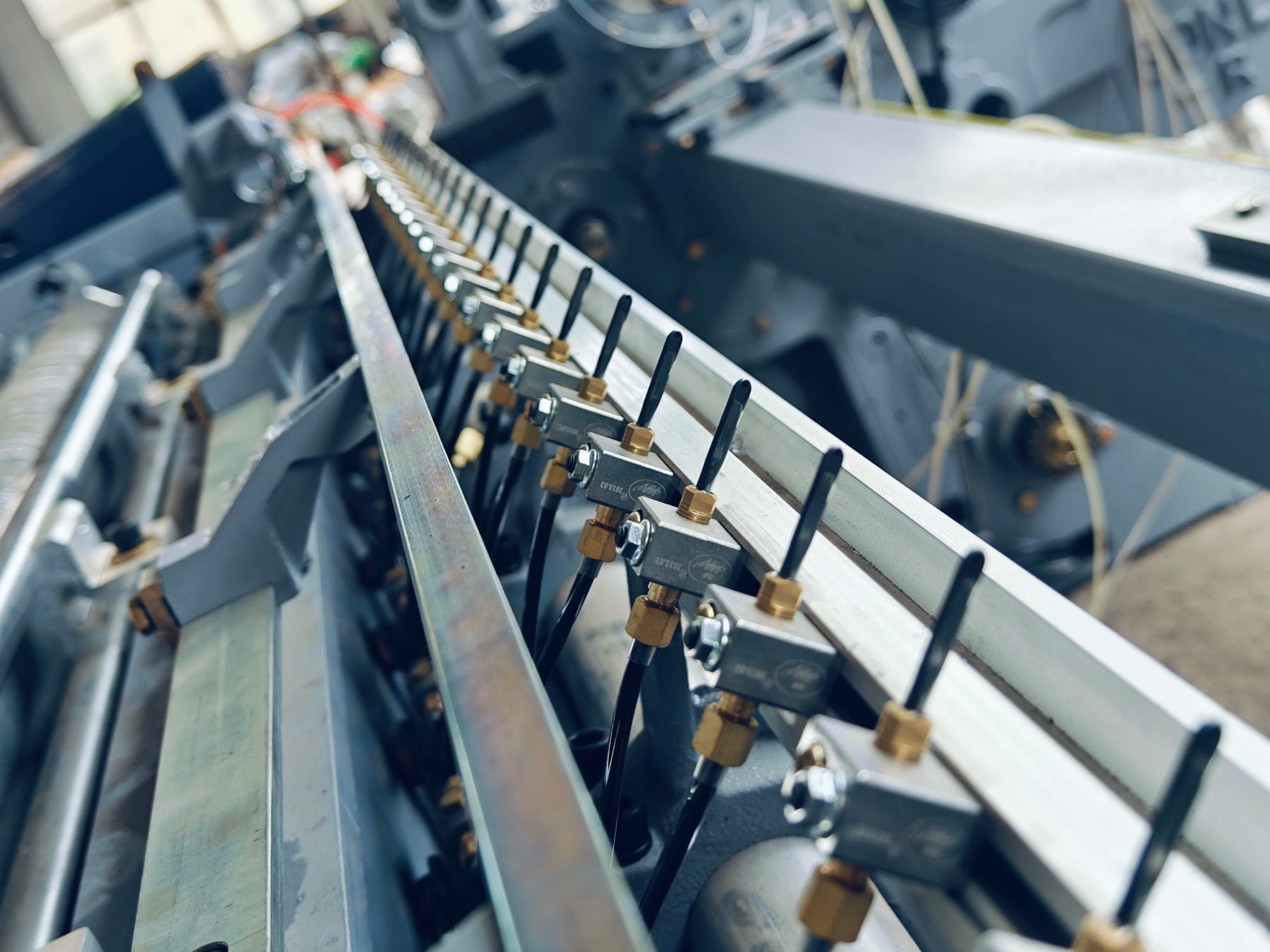

DLC Auxiliary Nozzles
Wear-resistant DLC coating provides more than twice the life of standard nozzles, reducing replacement frequency.
Fabric Formation & Maintenance
Heald frames, leno, cutting devices, and centralized lubrication support shed opening, selvedge formation, clean cutting, and scheduled maintenance.
Shedding Frame

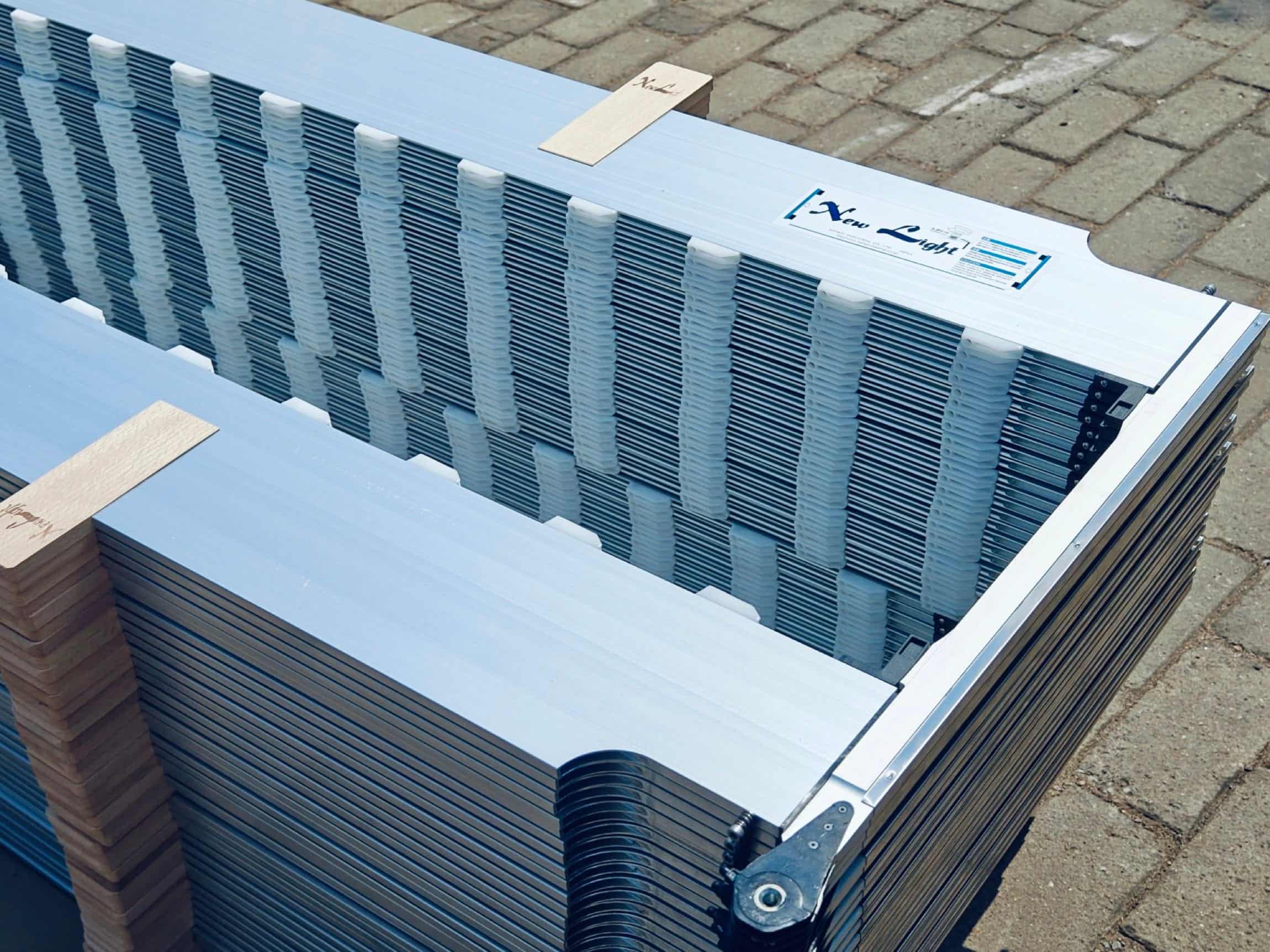

NEWLIGHT Heald Frames
Japanese NEWLIGHT frames provide accurate shedding with low inertia for reliable high-speed operation.
Selvedge Formation

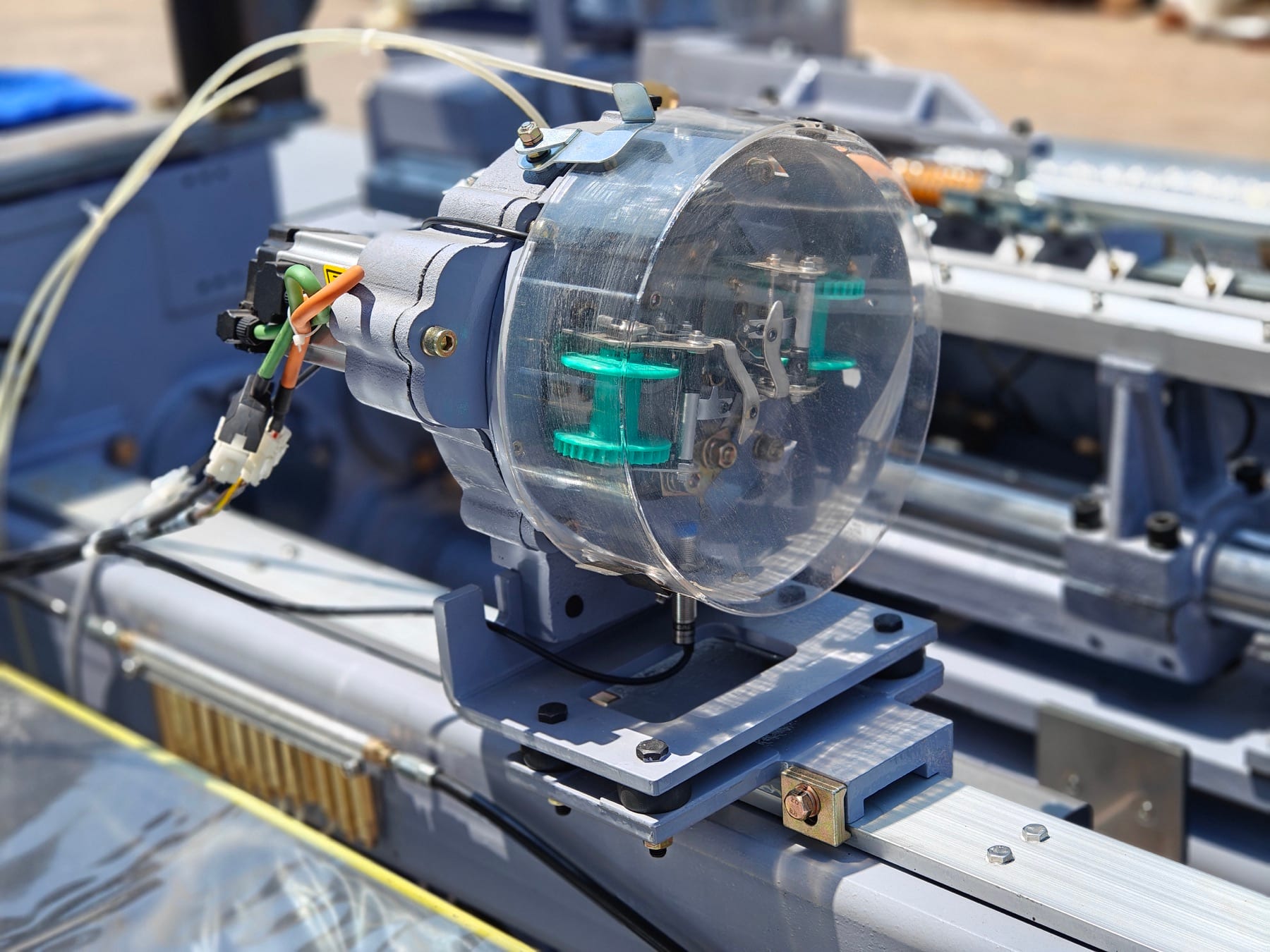

Electronic Leno Device
Electronic leno motion secures the weft at the fabric edge for a cleaner, more stable selvedge.
Cutting System

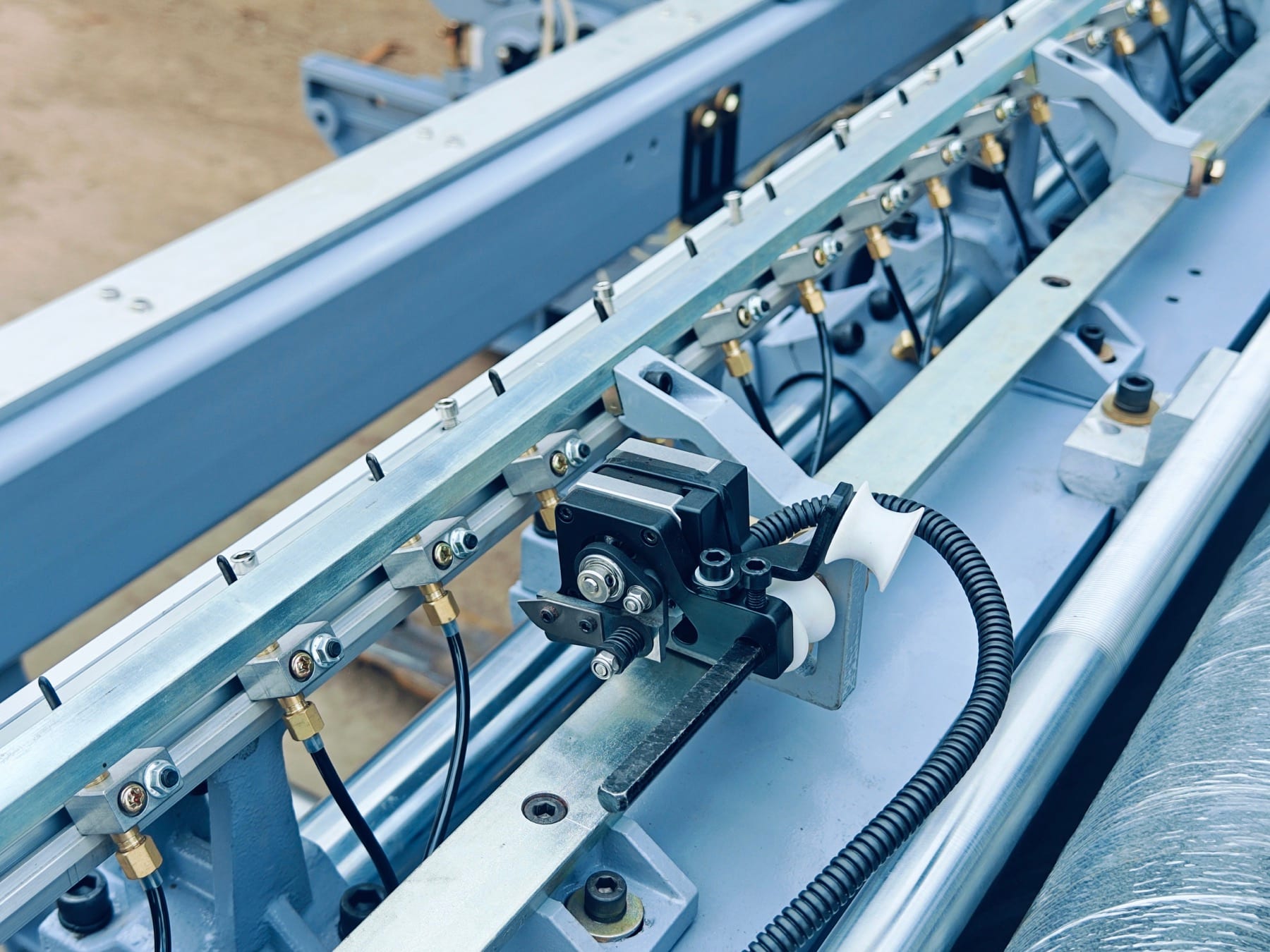

Electronic Center & Selvedge Scissors
Electronic scissors match high-speed operation for clean cutting. A center cutter can be configured for wider machines.
Lubrication System

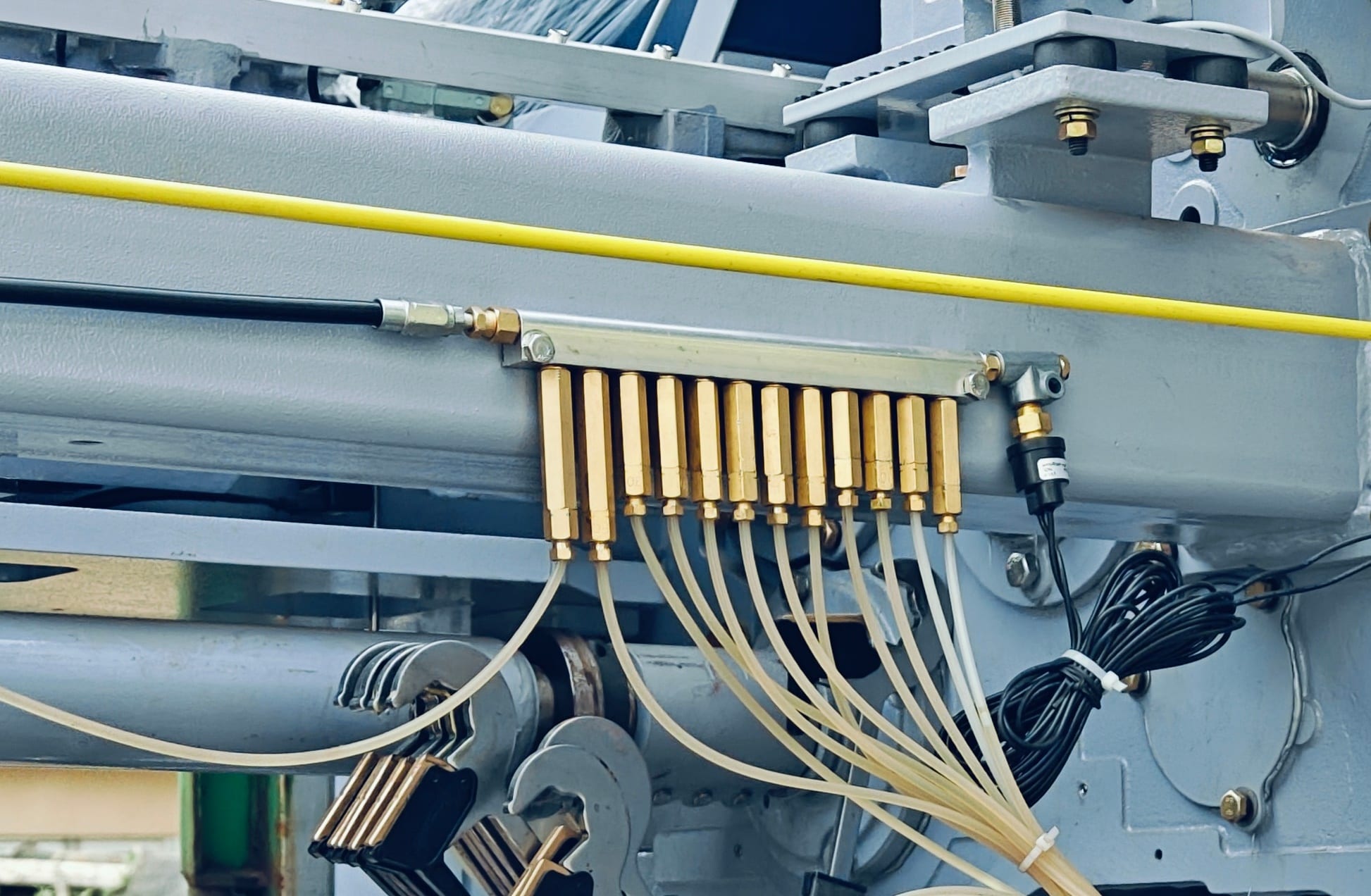

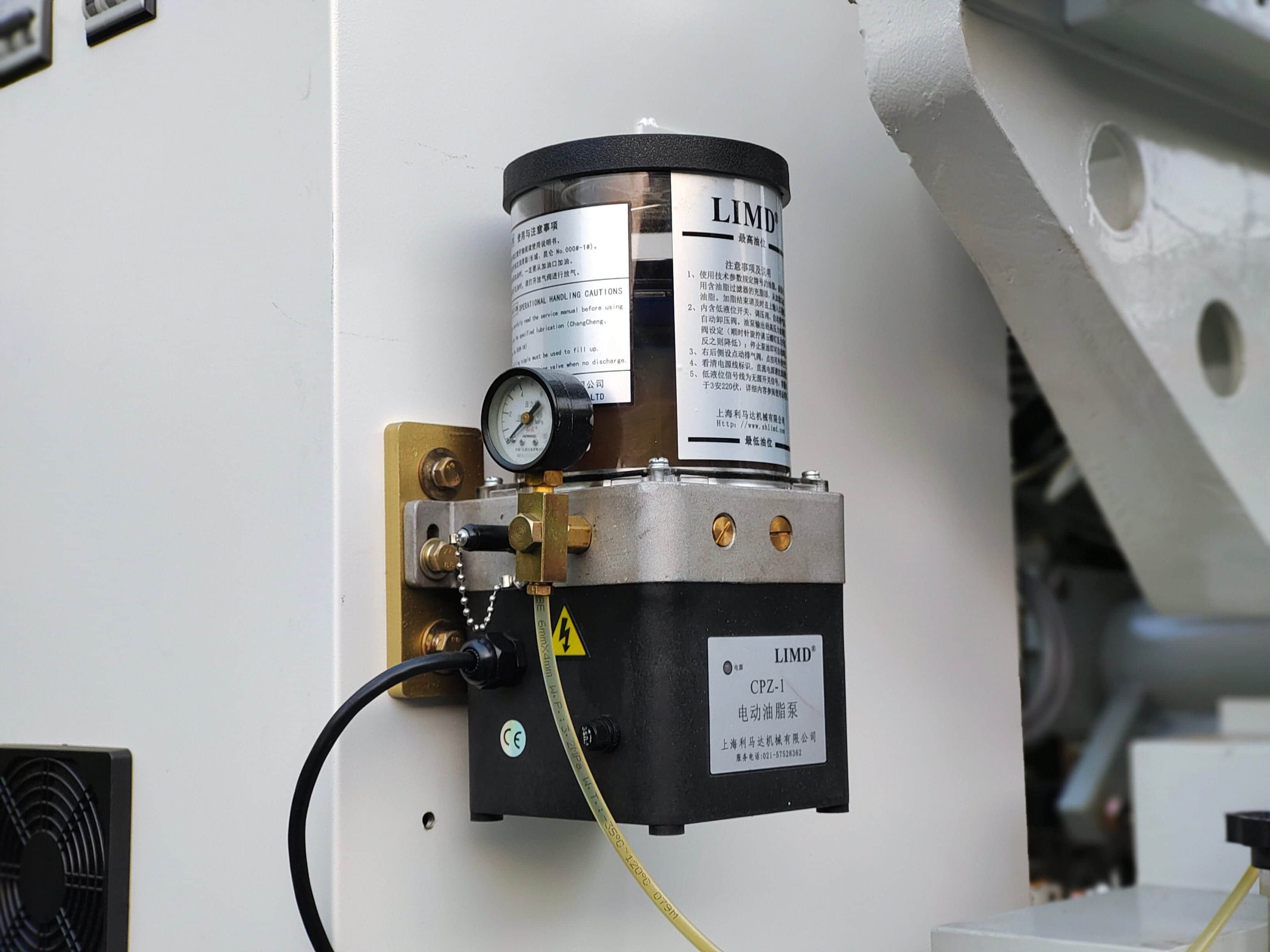

Automatic Central Lubrication System
The programmed pump supplies oil automatically, while the manifold distributes it evenly to key lubrication points for reliable long-term operation.
04
MG9200 Max Specifications & Configuration
Review the reference setup below to confirm the machine configuration included in the final quotation.
Status guide: Standard Reference means the current reference setup; Optional is not included unless quoted; Matched by Project is finalized from fabric and site data. The approved quotation and technical agreement govern final supply.
Core Machine Configuration
| Item | Configuration |
|---|---|
| Body Type | Standard Reference Integrated heavy-duty frame designed for stable high-speed air-jet weaving. Final body dimensions and floor-fixing details are confirmed with the approved machine layout. |
| Beating Shaft | Standard Reference Patented coaxial central dynamic balance beating shaft system for low noise, stable high-speed operation, and consistent beat-up force. |
| Heald Frames | Standard Reference 8 NEWLIGHT heald frames (Japanese brand). |
| Electric Feeder | Standard Reference 2 electronic weft feeders, made in China. |
| Let-Off System | Standard Reference Positive let-off system, servo-motor driven. |
| Take-Up System | Standard Reference Servo-motor driven. |
| Controller System | Standard Reference 14-inch English HMI with intelligent interactive electrical control system. |
| Side Cutter | Standard / Optional Mechanical cutter. Customer check: Mechanical cutting is the standard reference; electronic center or selvedge scissors are optional and quoted when required. |
Air System & Weaving Parts
| Item | Configuration |
|---|---|
| Main Nozzle Valve | Standard Reference Direct-mounted to the main nozzle for faster air response; original Japanese SMC valve. |
| Relay Nozzle Valve | Standard Reference One solenoid valve controls two relay nozzles; original Japanese SMC valve. |
| Relay / Auxiliary Nozzles | Standard Reference Wear-resistant DLC-coated nozzles with more than twice the service life of standard nozzles. |
| Air Pressure Regulator | Standard Reference Premium Japanese SMC regulators for precise, energy-efficient air pressure control. |
| Warp Beam | Standard Reference 2 sets, diameter 800 mm; disc weight: 32 kg. |
| Cloth Roller | Standard Reference 2 sets, aluminum. |
| Reed | Standard Reference 1 pc profile reed. |
| Dropper / Heddle Wire | Standard Reference 10,000 pcs stainless steel open-type dropper wires; 10,000 pcs stainless steel heddle wires, 280 mm. |
05
Quality & After-Sales Support
The quality and support points to confirm before approving the final quotation.
Key Quality Configuration
- A range of key patented technologies supports stable machine operation at high speeds.
- Wall-body bearings: original Japanese NSK / NACHI.
- Two-year warranty for major structural components.
- After-sales support includes one year’s supply of standard wear parts.
- Ongoing online technical consultation and spare-parts supply support.
Confirm the Final Configuration
Share your fabric construction, yarn count, warp and weft density, finished width, number of weft colors, target output, and available compressed-air capacity. JETMECH will confirm all standard, optional, and project-matched items before quotation.
Application-led loom selection
Match the air jet loom specification to fabric material, reed width, yarn condition, and production target.
MG9200 Max | Air Jet Weaving
Company / Applications
Focused Air Jet Loom Manufacturer in Qingdao, China
Qingdao JETMECH Machinery Technology Co., Ltd. supplies advanced air jet looms for overseas weaving factories. Product discussion starts from fabric type, reed width, yarn condition, workshop layout, and target output, then moves into practical machine configuration and export communication.
Air Jet Applications
Cotton, blended fabrics, denim, home textiles, and high-speed weaving projects requiring stable weft insertion.
Configuration Support
Machine model, reed width, shedding, let-off, take-up, motor, packing, and delivery details are matched by project.
Global Support
Get a loom configuration matched to your fabric.
Share six project details. JETMECH will recommend the machine type, configuration, and quotation basis for your production plan.
- 01Project reviewFabric construction, yarn condition, and required cloth quality.
- 02Machine matchingReed width, shedding, air system, drive, and control options.
- 03Clear proposalRecommended configuration, quotation basis, and delivery requirements.
- Factory Name
- Qingdao JETMECH Machinery Technology Co., Ltd.
- Location
- Qingdao, Shandong Province, China
